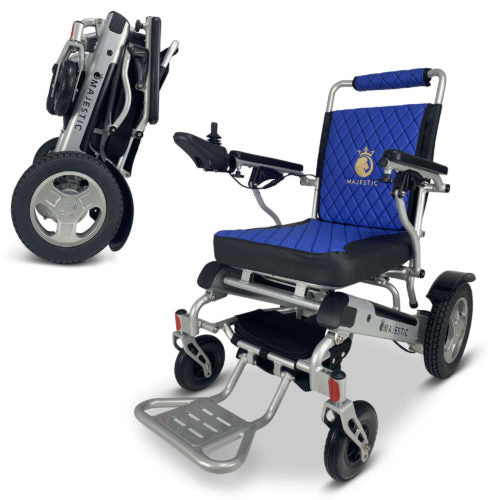

Patriot-11 Foldable Electric Wheelchair (20″ Wide Seat)

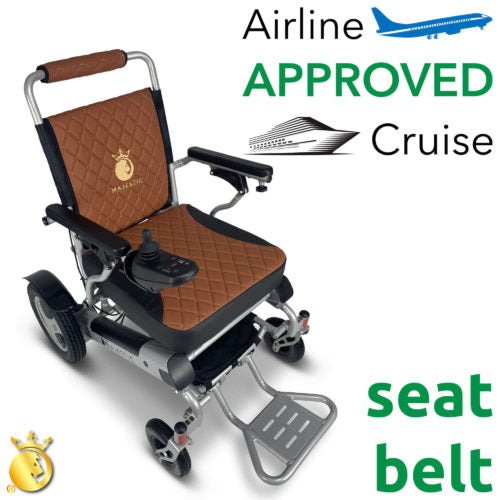

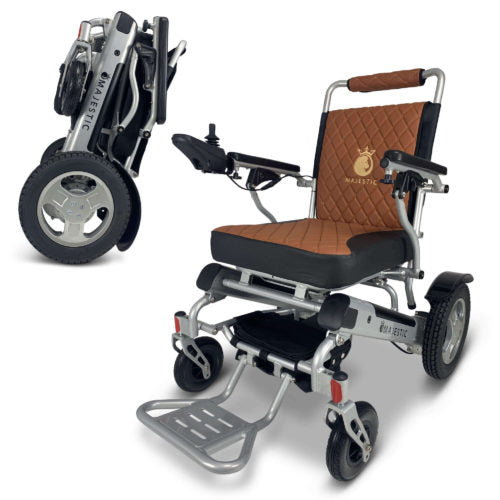

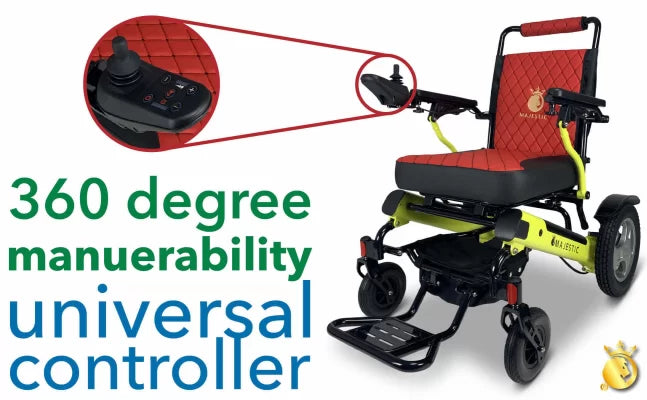

The Patriot-11 electric wheelchair is a sleek, designed travel folding wheelchair. This transport wheelchair is FDA Approved and airline friendly. It has a weight capacity limit of 265 lbs. and a top speed of 4 mph. The Patriot-11 folds easily in your car trunk and is available in two frame colors and four optional textile colors. It’s equipped with a 360-degree waterproof universal intelligent joystick for easy control. The intelligent joystick includes a power on/off button with a power indicator light, speed selection buttons, and a horn. It contains two 6AH lithium-ion batteries that power two 250W brushless DC motors that deliver a range of up to 13 miles.
Performance Parameters and Technical Specs, Patriot-11 Electric Wheelchair
Seat Area Width *
20 inches / 508 mm
Seat Area Depth
17 inches / 430 mm
Seat Height
20 inches / 508 mm
Armrest Height
9.5 inches / 242 mm
Backrest Height
20.5 inches / 520 mm
Max Loading Weight
286 lbs. / 130 kg

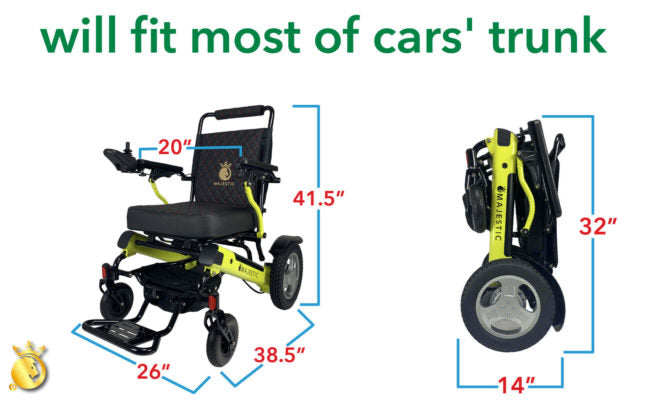

Overall Product Dimensions
Length: 38.5 inches / 978 mm Width: 26 inches / 660 mm Height: 42 inches / 1067 mm

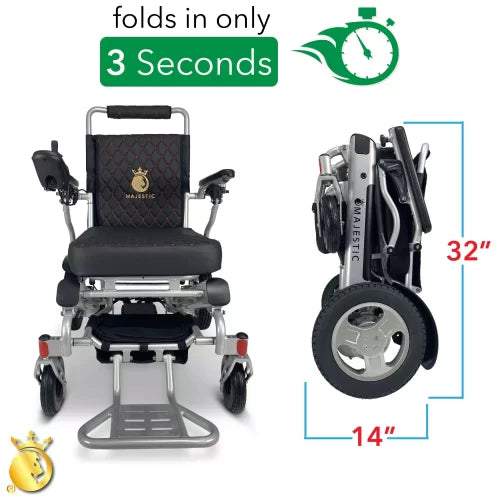

Folded Product Dimensions
Length: 26 inches / 660 mm Width: 14 inches / 356 mm Height: 32 inches / 813 mm
Net Weight without Battery
58 lbs. / 26.4 kg
Net Weight with Battery **
66 lbs. / 30 kg
Battery Weight **
2*4 lbs. / 2*1.8 kg
Battery Charge
AC 100-240V, 50Hz,1.5-5A
Battery Charge Time
6 to 8 hours
Battery Type
2*6AH lithium ion
Airline / Cruise Approved
Yes
Range ***
Up to 13+ miles / 20 km
Max Speed
4 mph / 6 kmh
Front Wheels
8 inches / 200 mm solid tire
Rear Wheel
12.5 inches / 320 mm inflatable

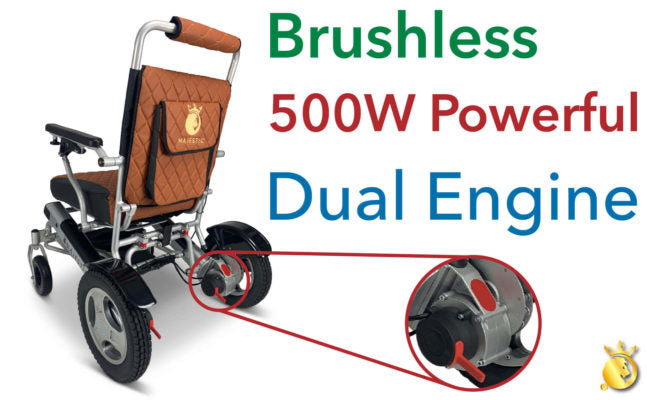

Motor
2 * 250W brushless (total 500W)
Climbing Angle Max Degrees
8
Degree of Protection
IPx3
Turning Radius
≤ 35.5 inches / 900 mm
Folding
Manual folding
Reclining
No
Adjustable Height Backrest
No

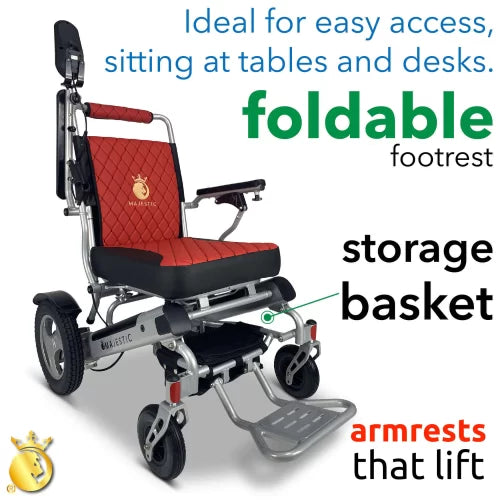

Raisable Armrests
Yes
Headrest
Optional – Additional Cost
Cupholder
Optional – Additional Cost
Phone Holder
Optional – Additional Cost
Headlight / USB Charger
Optional – Additional Cost
Tire Pump
N/A – Solid Tire
Wireless Remote Control
No

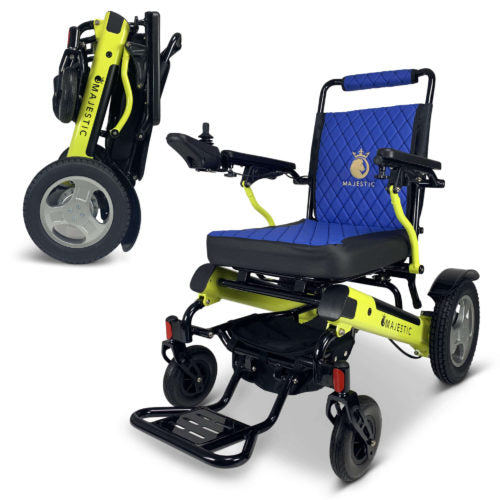

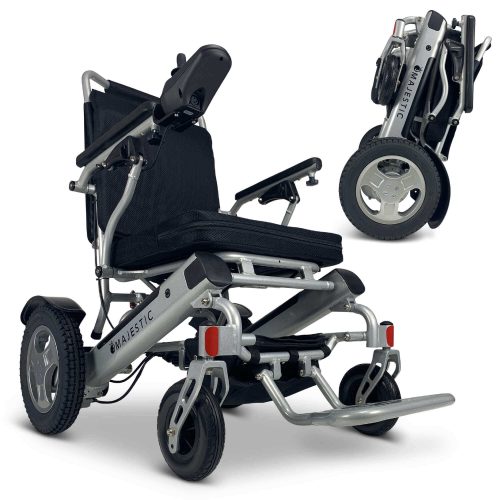

Frame Color Option
Silver, Yellow
Cushion Color Options
Standard, Black, Red, Blue, Taba
Packaging Dimensions
Length: 33 inches / 838 mm Width: 17 inches / 432 mm Height: 31 inches / 790 mm
Packaging Weight
75 lbs. / 34 kg
* Distance between the armrests.
** Weight is for standard range (2*6AH) battery.
*** Varies based on weight, incline, and speed factors.
