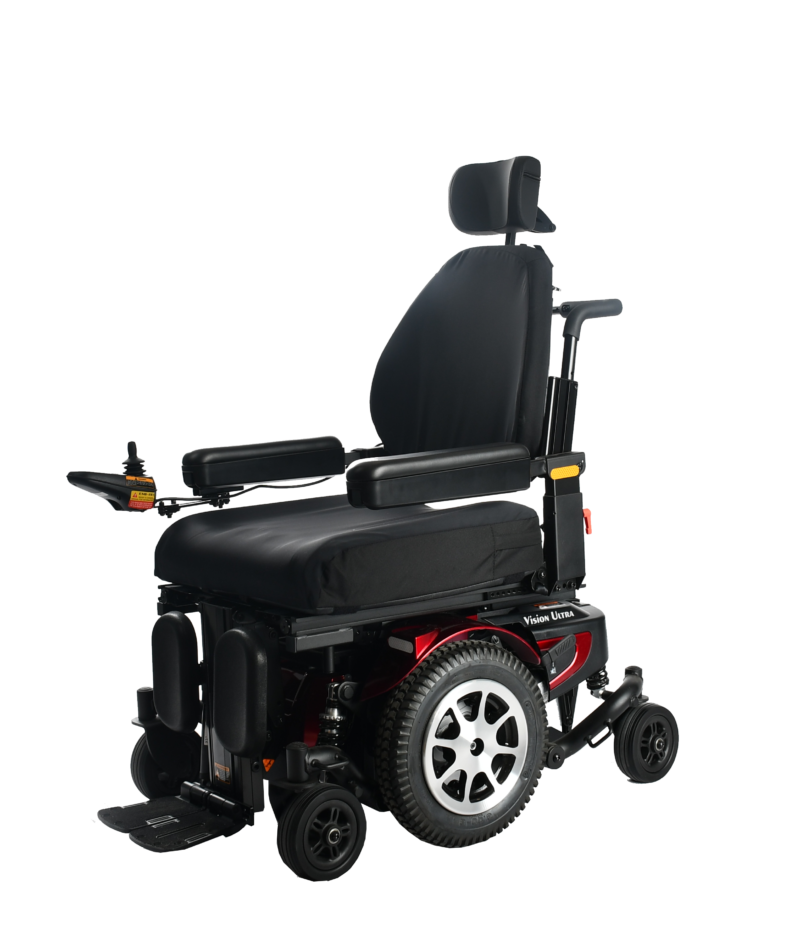

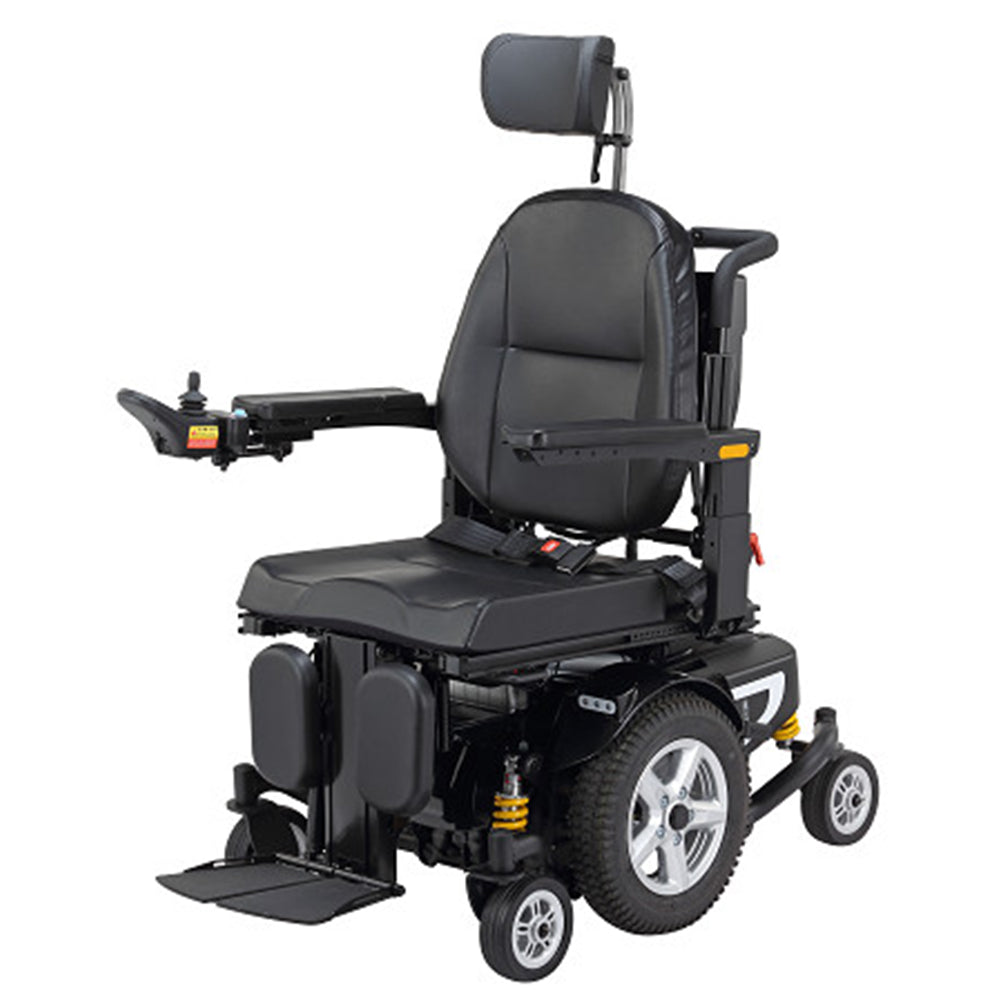

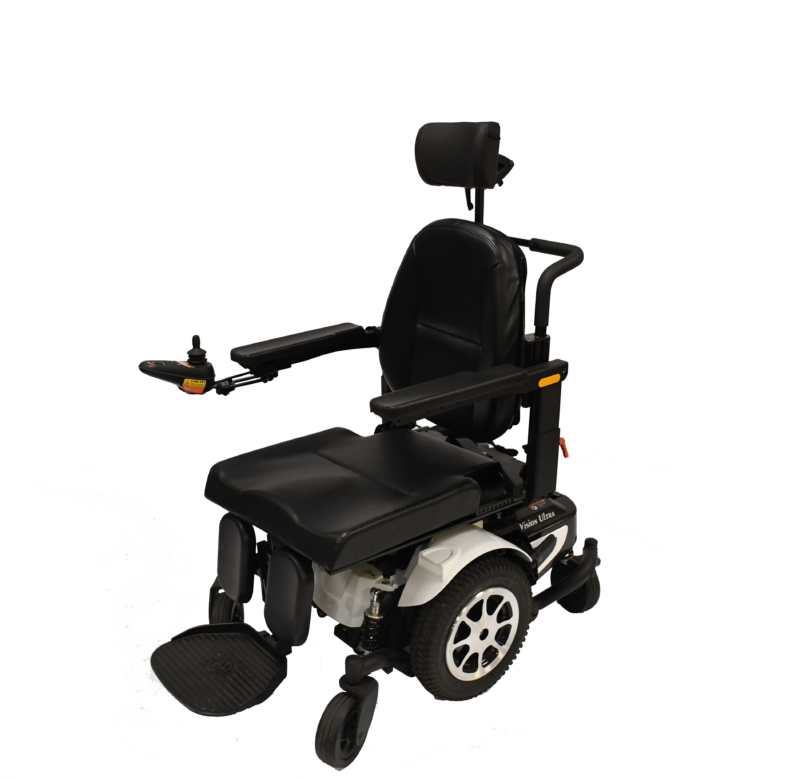

VISION ULTRA ? P325 Power Wheelchair

Product Description:

The Vision Ultra is a compact and versatile power wheelchair. With 6 wheels on the ground this unit has the stability and durability to withstand the test of time. This unit features 14” drive wheels, a 300 pound capacity, and a seat-to-floor height starting at 16.5”.

• Large 14-inch knobby drive tires

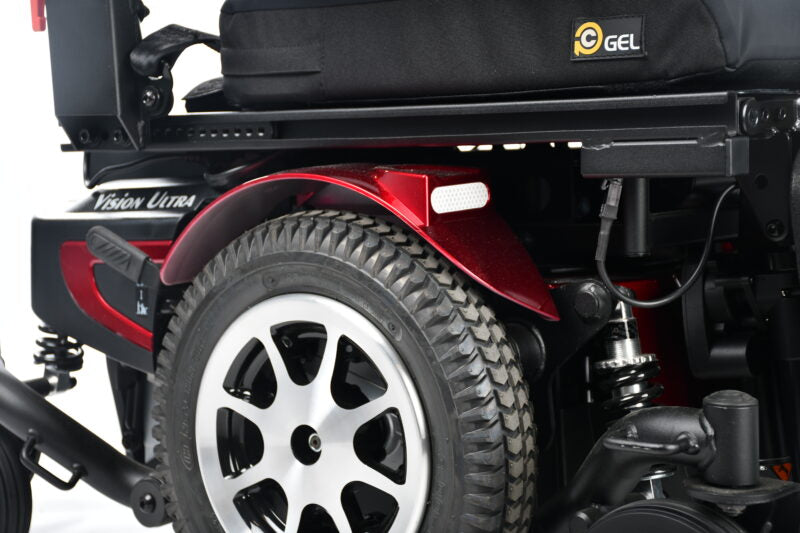

• Tension adjustable front and rear suspension
• Unoccupied tie down restraints

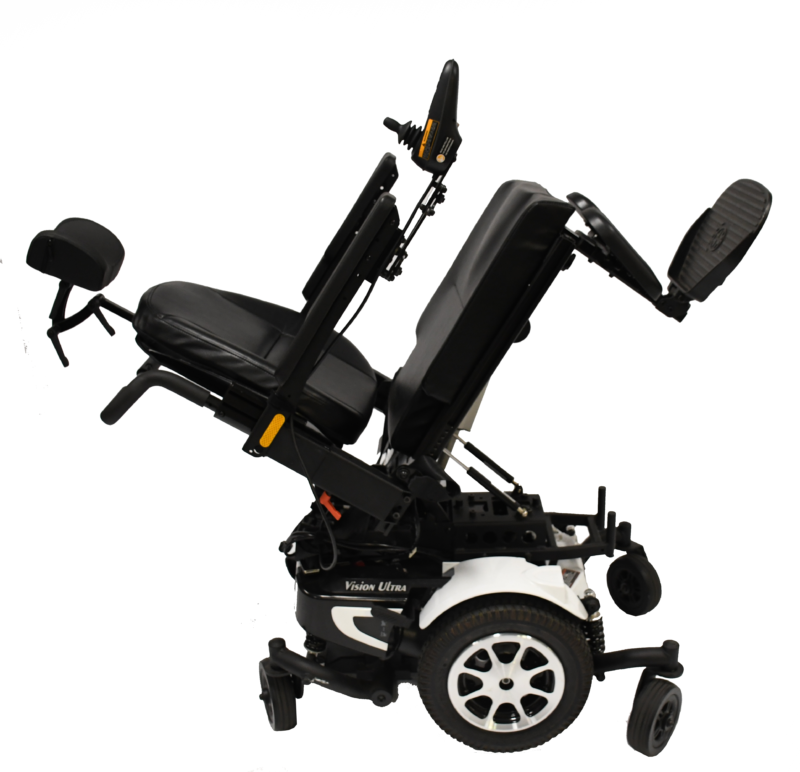

• Multiple seating options, power tilt, rehab seat frame, captain or solid seat pan
• Multiple seat-to-floor height options: 16.5-19.5-inches
• Width and depth-adjustable seat; 16-22-inches in 1-inch increments

• Max Speed: 5mph

• Range: up to 12 miles

• Turning Radius: 26″

• Ground Clearance: 2.5″

• Motor: DC 24V, 240W

• Battery: 34Ah/U1 or 22NF

• Charger: 6A off board

• Controller: VR2

• Gradient: 6°

• Casters: 6″x 2″

• Drive Wheels: 14″ x 3″

• Brakes: Intelligent, regenerative, electromagnetic

• Seat Width: 16″- 22″

• Seat Depth: 16″- 22″

• Seat Height: 16.5″- 19.5″

• Backrest Height: 21″- 23″

• Overall Length: 36″

• Overall Height: 40″

• Overall Width: 24″

• Total Weight: 332 lbs

• Weight Capacity: 300 lbs

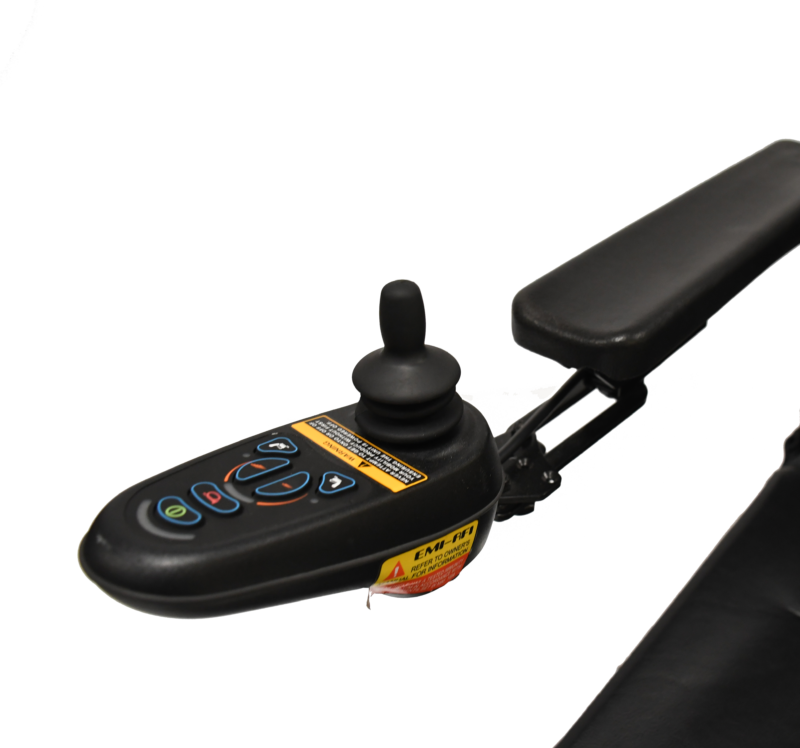

• Swing-away joystick

• USB Charger

• Power articulating foot platform

• Walker holder

• Weather cover

• Elevating legrests

  Warranty

  • 18 months: Motor & Electronics

  • 5 Year/Limited Lifetime Frame

  • 1 Year Battery

  Specifications

  Weight Capacity	300 lbs.
  Product Weight	332 lbs
  Battery Weight	37 lbs. (each)
  Battery Type	12V X 34 AH
  Maximum Speed	5 mph
  Drive Range	12 Miles
  Turning Radius	26"
  Seat Width	16"-22"
  Seat Depth	16"-22"
  Overall Length	36"
  Overall Width	24"
  Overall Height	40"
  Ground Clearance	2.4"
  Drive Type	Mid Wheel Drive
  Front Wheel Size	14"
  Rear Wheel Size	14"
  Captain Seat Backrest Height	20"
  Floor to Seat Height	16.5"-19.5"
